Athena II - 16K Yellow LCD Module

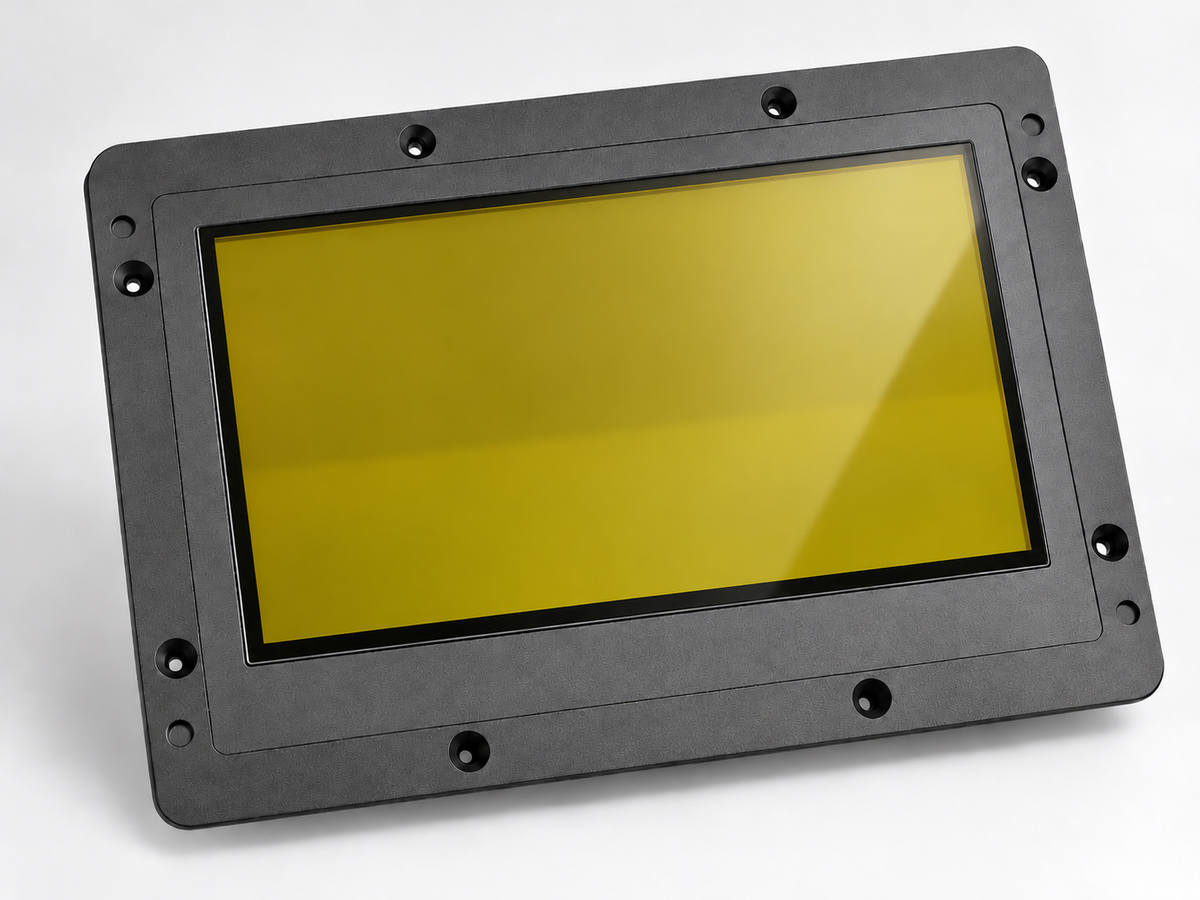

Athena II 16K Yellow Polarizer LCD Module

Compatible with Athena II

The Athena II 16K Yellow Polarizer LCD Module is the current-generation 16K replacement screen assembly for Athena II printers. It uses the same 9.6" 16K monochrome LCD format as the Black Polarizer version, but with a yellow polarizer that makes it compatible with both 405nm and 385nm light sources.

Like the Black Polarizer version, this module also takes full advantage of Athena II’s 8-bit grayscale / anti-aliasing support, allowing for smoother surfaces and improved model smoothing compared to many typical 3-bit 16K systems. This helps improve the appearance of fine details, curved geometry, and shallow angles.

Key Features

• Compatible with Athena II

• Replacement LCD module for 16K Yellow Polarizer systems

• 9.6" 16K monochrome LCD

• Yellow polarizer for 405nm and 385nm compatibility

• Ultra-high-resolution masking for fine detail

• Supports 8-bit grayscale / anti-aliasing on Athena II

• Improved model smoothing compared to typical 3-bit 16K systems

• Current 16K upgrade path for Athena II

Important

• Compatible with both 405nm and 385nm light sources

• All Athena II printers can physically accept all Athena II LCD modules, but the FPGA/video board must match the LCD type

• This module requires the 16K video board configuration

• If upgrading from a 12K Athena II printer, order this module together with the Athena II 16K 8-Bit Video Board

• Please contact us before ordering to confirm compatibility
