Athena II - 16K Black LCD Module

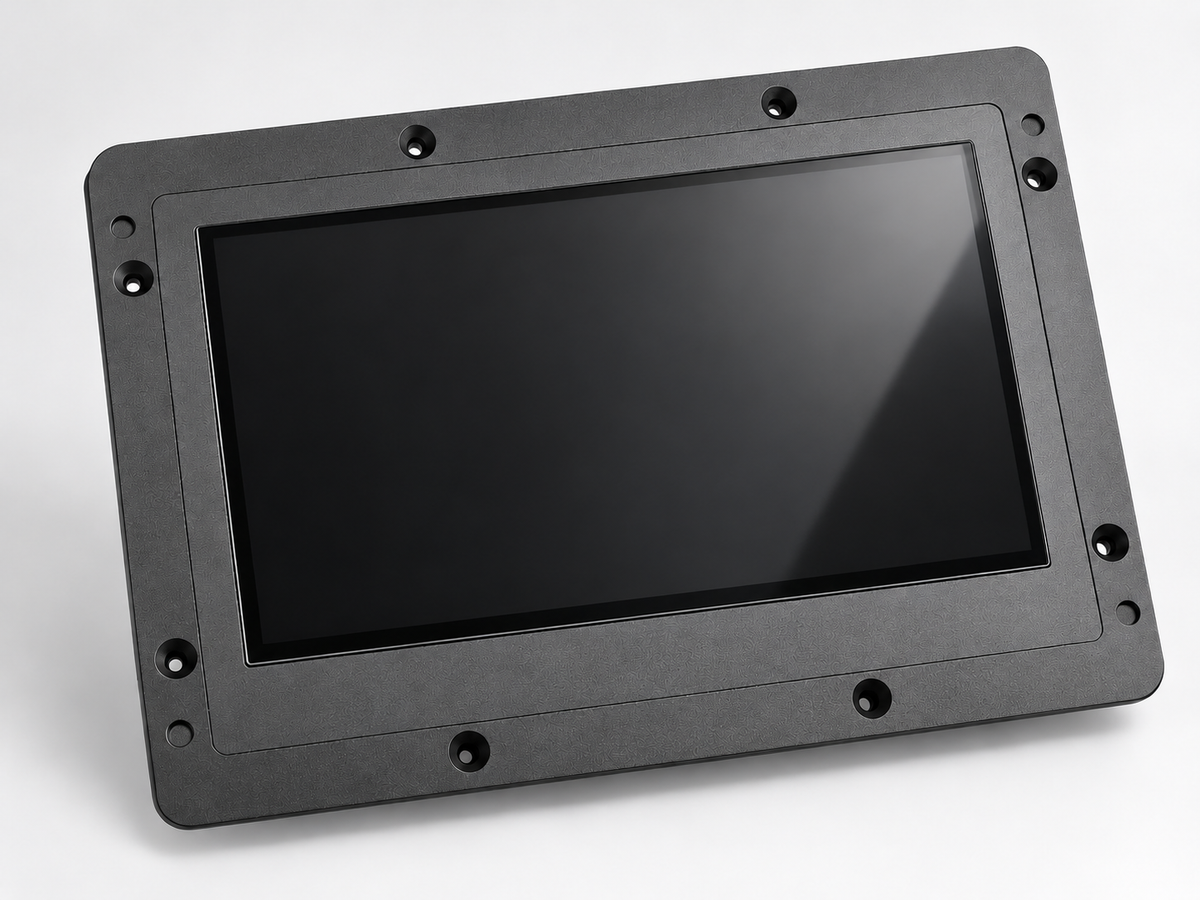

Athena II 16K Black Polarizer LCD Module

Compatible with Athena II

The Athena II 16K Black Polarizer LCD Module is a replacement screen assembly for Athena II printers using the original 16K Black Polarizer display system. It is intended as a spare part for existing printers and delivers ultra-high-resolution masking performance for detailed resin printing.

This module uses a 9.6" 16K monochrome LCD and is designed to take full advantage of Athena II’s display system, including 8-bit grayscale / anti-aliasing support for smoother surfaces and improved model smoothing. Compared to typical 3-bit 16K systems, Athena II can deliver better edge blending and a cleaner appearance on curved and angled surfaces.

Key Features

• Compatible with Athena II

• Replacement LCD module for 16K Black Polarizer systems

• 9.6" 16K monochrome LCD

• Ultra-high-resolution masking for fine detail

• Supports 8-bit grayscale / anti-aliasing on Athena II

• Improved model smoothing compared to typical 3-bit 16K systems

• Direct replacement for damaged or worn modules

Important

• This product is discontinued and is only available as a spare part

• Compatible with 405nm light sources only

• Not compatible with 385nm light sources

• All Athena II printers can physically accept all Athena II LCD modules, but the FPGA/video board must match the LCD type

• This module requires the 16K video board configuration

• Please contact us before ordering to confirm compatibility
