Athena II - 16K 8-Bit Video Board (Pre-Order)
Athena II - 16K 8-Bit Video Board (Pre-Order)

Athena II - 16K 8-Bit Video Board (Pre-Order)

$106.00 CAD

Pre-Ordering now for the next production Batch which should begin shipping to customers BY END OF APRIL 2026.

*By clicking "Pre-order" I understand that I am purchasing a PRE-ORDER product and not an IN-STOCK product, and that I will be responsible for any relevant taxes, tariffs and import duties for my country. Therefore I agree to the Terms & Conditions of the pre-order process.

Orders are shipped in the order they are received, so placing your order early ensures faster delivery.

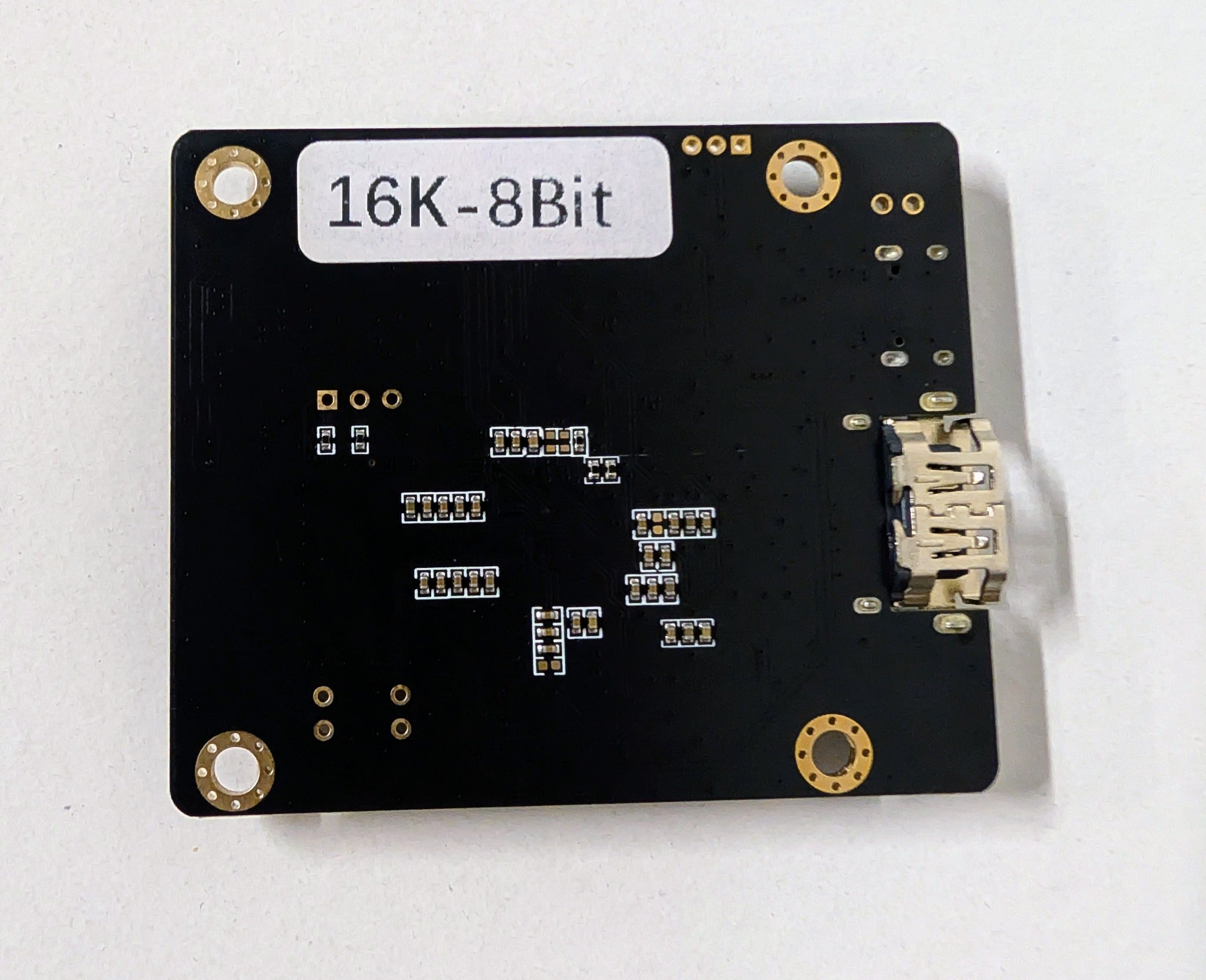

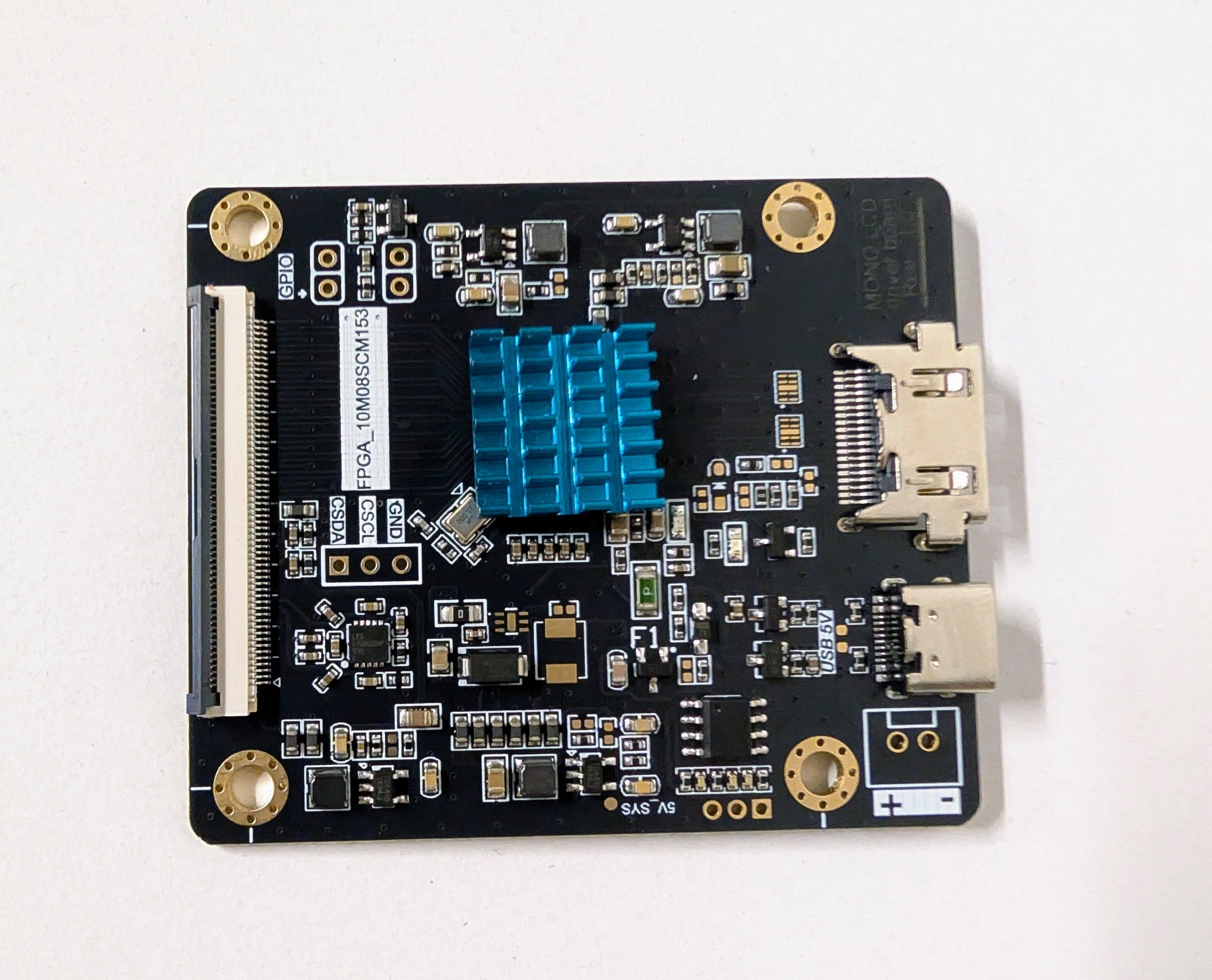

Athena II 16K 8-Bit Video Board

Compatible with select first-batch Athena II printers only

The Athena II 16K 8-Bit Video Board is a next-generation FPGA-based driver board designed to power the 16K monochrome LCD with improved grayscale control, smoother image rendering, and more precise signal handling. It replaces the original 3-bit video board used in early 16K Athena II systems and is intended for users who want improved print quality and compatibility with the latest 16K hardware.

This upgrade is only for first-batch Athena II printers. All newer Athena II printers equipped with a 16K LCD will include this board pre-installed. Please check with us before ordering to confirm whether your printer requires this part.

Key Features

  • Designed for first-batch Athena II printers with 16K LCD

  • FPGA-based 8-bit video board

  • Upgrades early 3-bit driver systems

  • Improved grayscale handling for finer detail and smoother transitions

  • Optimized for high-bandwidth 16K LCD data transmission

  • Precise timing and reliable signal control

  • Compatible with both 385 nm and 405 nm optical systems

Designed for Higher Precision 16K Printing

The Athena II 16K 8-Bit Video Board is built for users who want the best possible performance from their 16K LCD setup. By providing true 8-bit grayscale control, it allows for better tonal accuracy, finer micro-detail, and smoother surface transitions, especially in demanding resin printing applications.

What’s Included

  • Athena II 16K 8-Bit FPGA video board

  • Quick-start installation guide

Important

  • This product is only intended for select first-batch Athena II printers

  • Please confirm compatibility with us before ordering

  • All new Athena II printers with 16K LCD will include this board pre-installed

  • Currently offered as a pre-order item

  • Expected to begin shipping in May 2026
